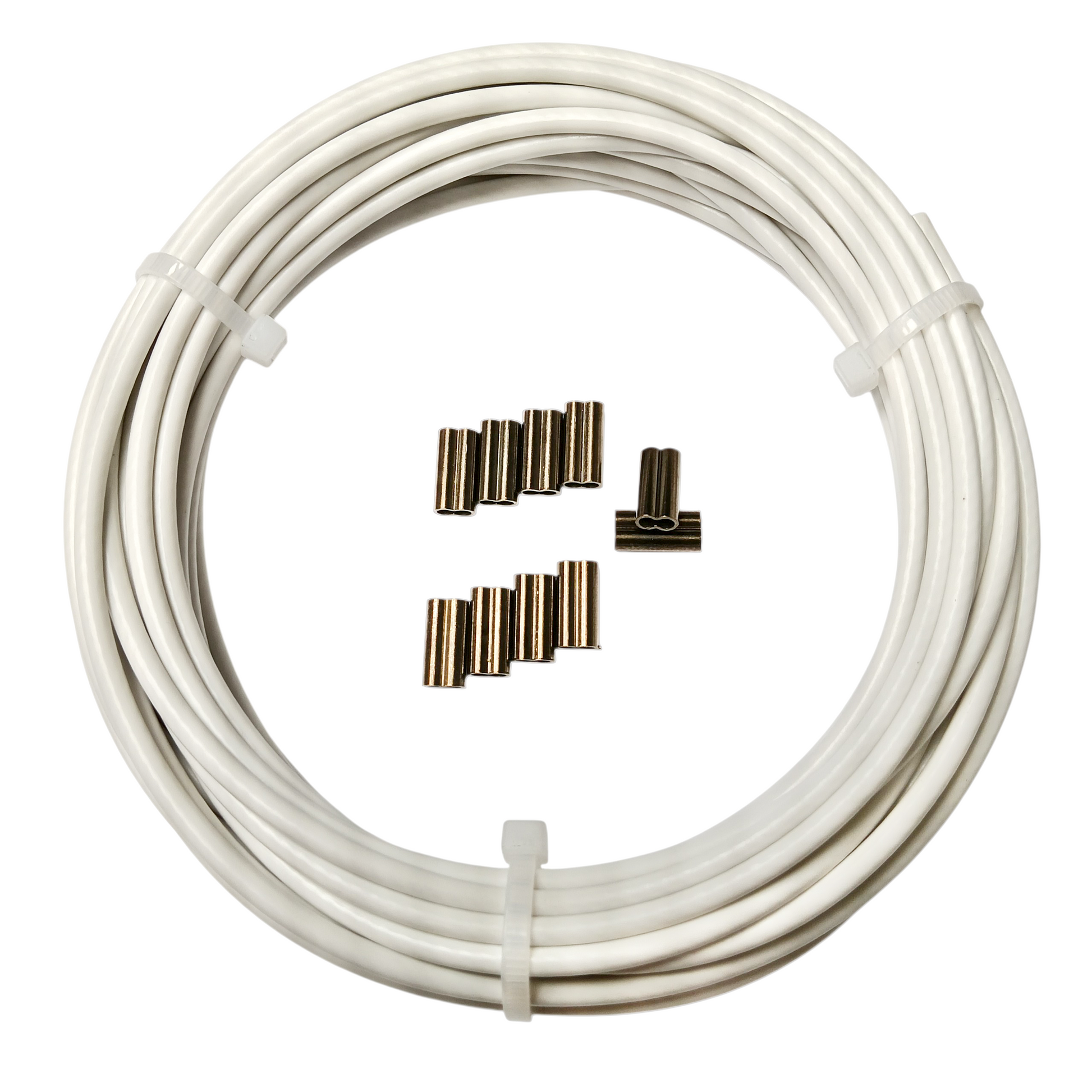

10m 2.5mm/3.5mm Stainless Steel Wire 880lb (*BARE WIRE CRIMP STYLE*)

• WIRE: 2.5mm 7x7 49 strand 316 stainless

• LENGTH: 10m

• BREAKING STRAIN: 800lb rated

• CRIMPS: 10pcs 2.8mm nickel plated copper

• COATING: 3.5mm white PVC*

*** THESE CRIMPS WILL NOT FIT ON THE COATING!   PLEASE READ DIRECTIONS BELOW ON HOW TO STRIP COATING OFF AND CRIMP ON BARE WIRE FOR ULTIMATE STRENGTH!***

STRIP & CRIMP METHOD:

Step 1: measure 11cm at cable end and mark

Step 2: cut a ring around nylon coating

Step 3: use either wire stripping tool, or lay knife/razor flat against the wire and cut strip of coating from the ring cut, 11cm to the end of the wire... And then remove the remainder of the coating by hand.

Step 4: holding the bare wire end, slide on 2 crimps, then hook or swivel, and loop wire back and slide into the 2 crimps

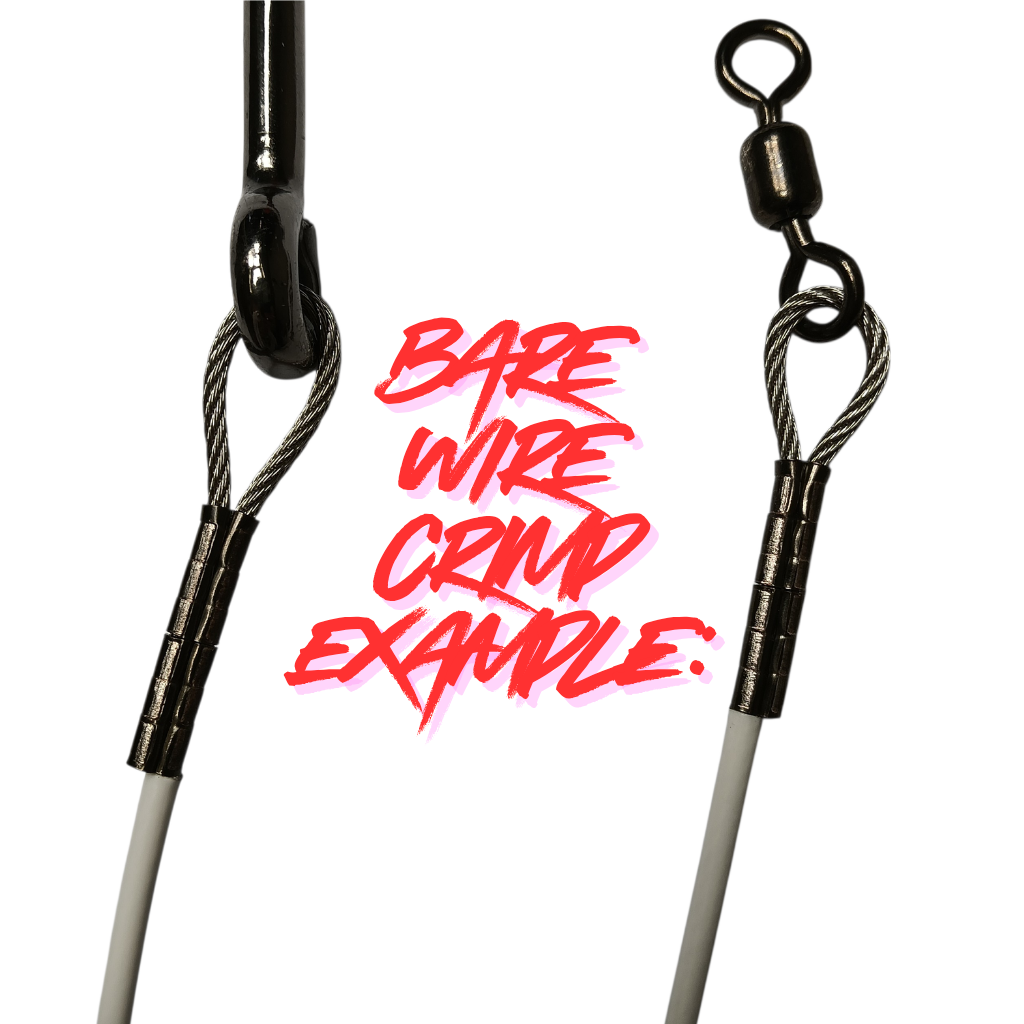

Step 5 crimp all down as hard as possible, but leave last 2mm closest to the wire loop uncrimped as shown in example.

 *** These crimps can be pressed with a small hand crimper in the 2.5mm slot ***

*** Wire and crimps supplied, to be assembled by the purchaser, no hooks and swivels included. ***
